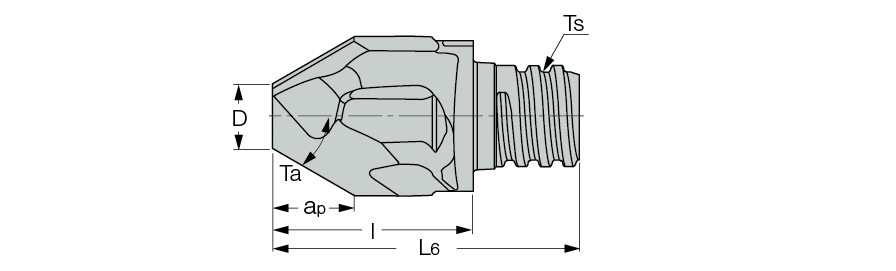

 MM HCF :  Interchangeable 2 flute, solid carbide chamfering head with a MULTI-MASTER adaptation. Cutting Conditions Machine Power

 For tightening torque click on info
Slanted shoulder. & chamfer.   Countersinking
  Designation
D
Z
Ap
Ts
D2
l
L7		 D
min
Ta°
L6		   Grade
  MM HCF100-060-2T06  10.00  2  10.00  T06  9.60  10.00  5.00  4.00  30  12.70 IC908
