| KIT HSK A-MAXIN : The kit contains a power chuck with an HSK taper shank and a set of collets in various bore sizes. |
|
|
|
|
|
 . |
 |

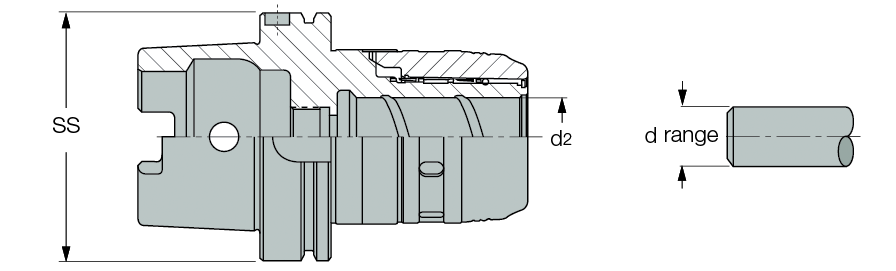

| Designation |
SS |
d2 |
Qty |
d
Range |
|
KIT HSK A 63 MAXIN20X95 6
|
63 |
20.00 |
6 |
6,8,10,12,14,16 |
|
KIT HSK A 63MAXIN32X113 7
|
63 |
32.00 |
7 |
6,8,10,12,16,20,25 |
|
KIT HSK A100MAXIN20X115 6
|
100 |
20.00 |
6 |
6,8,10,12,14,16 |
|
KIT HSK A100MAXIN32X106 7
|
100 |
32.00 |
7 |
6,8,10,12,16,20,25 |
|
A cooling tube must be used with all coolant through HSK spindles (should be ordered separately).
Each kit contains one power chuck, a set of SC-SPR collets, extracting hook and wrench.
For shank dimensions, Click on "More Info".
|
 |
    |
|
|
|
