HSK A63WH-SLANR/L-TANG :  Holders with HSK taper shanks for LNMX-HT tangentially, screw clamped inserts. Recommended for heavy-duty applications. Can be used on turn-mill machines.
 Complies with the ICTM and HSK-T standards.

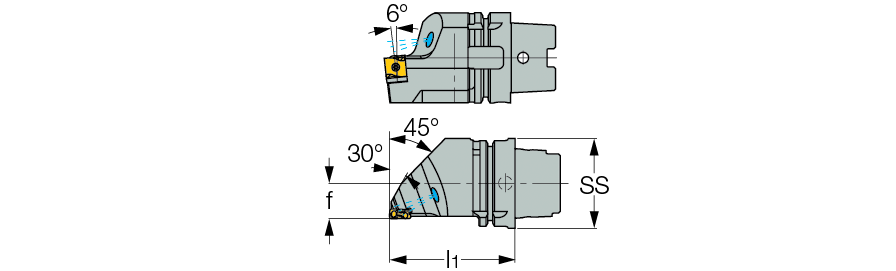

Right-hand shown

Ext. tangential 93° approach   Radial Turning   HSK   COOLANT
  Designation
SS
l1
f
R/L
  HSK A63WH-SLANL-G11 TANG  63  90.00  25.0  L
  HSK A63WH-SLANR-G15 TANG  63  90.00  25.0  R

A cooling tube must be used with all coolant through HSK spindles (should be ordered separately).
ap max for facing: LNMX 11-2.8mm, LNMX 15-3.8mm.
For shank dimensions ,Click on "More Info".
