E-GEHIR / E-GHIR :  Interchangeable heads for internal grooving and turning. Used on a solid carbide shank. Using GEMI and GEPI inserts in widths larger than .075".

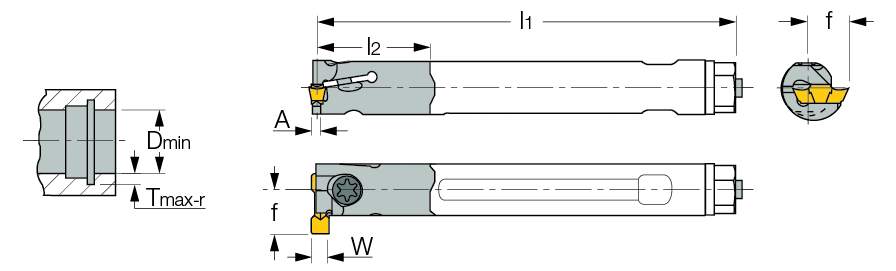

 Right-hand shown

Int. Groov & Turn   Int. Grooving   Int. grooving (side limit)   Int. Profiling   Threading (Int.)   COOLANT
  Designation W
min		 W
max		 D
min
Tmax-r
l1
l2
f
A
  E12 GEHIR 16-1  1.50  1.90  16.00  2.20  174.00  21.0  9.0  1.20
  E12 GEHIR 16-2  1.90  2.40  16.00  2.20  174.00  21.0  9.0  1.60
  E12 GEHIR 16-3  2.40  3.00  16.00  2.20  174.00  21.0  9.0  2.00
  E16 GHIR 25-3  2.40  3.00  25.00  4.00  209.00  28.7  12.8  2.00

Left-hand heads on request
The shank assembly is the same for right- and left-hand heads
Shank assembly screw and nut are available in KITBORING E12 SHANK
