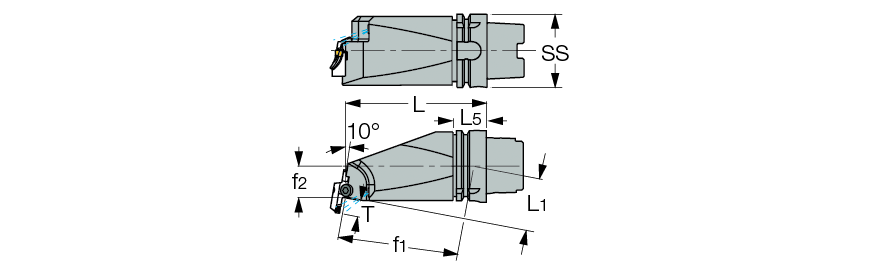

HSK A63WH-MAHUR/L :  Holders for MODULAR-GRIP parting, grooving, turning and facing adapters with HSK-T exchangeable, tapered shanks. 10° mounting on mill-turn machines.
 T= See specific adapter dimensions
Right-hand shown

MAHUR/L  COOLANT
  Designation
SS
f1
f2
L
L1
R/L
  HSK A63WH-MAHUL-10  63  113.1  29.00  130.00  49.4  L
  HSK A63WH-MAHUR-10  63  113.1  29.00  130.00  49.4  R

A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)
Complies with the ICTM and HSK-T standards
