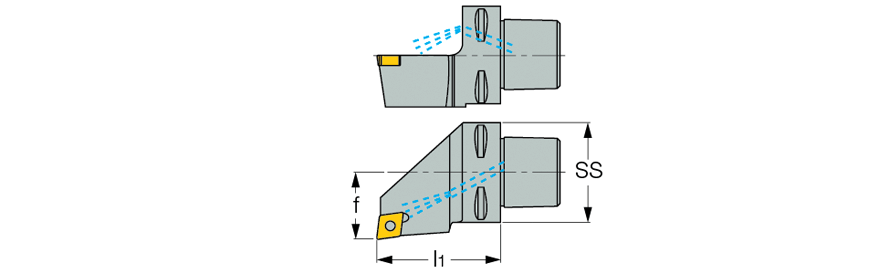

C#-SCLCR/L :  Screw lock toolholders with CAMFIX (ISO 26623-1 standard) exchangeable shanks, for 80° rhombic inserts with 7° clearance angle.
 Right-hand shown

Ext. 80° diamond 95° approach   Radial Turning   CAMFIX ISO 26623-1   COOLANT
  Designation
SS
f
l1
R/L
  C4 SCLCL-27050-09  40  27.0  50.00  L
  C4 SCLCR-27050-09  40  27.0  50.00  R
