C-SDJCR/L :

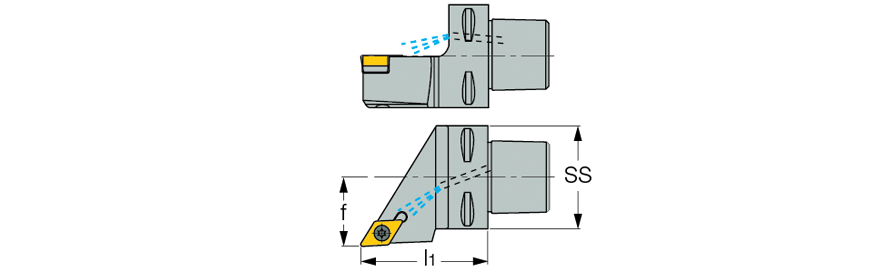

Screw lock, exchangeable heads for 7° clearance, 55° diamond inserts compatible with COROMANT CAPTO® system.
The trademark COROMANT CAPTO is owned by Sandvik Intellectual Property AB
Designation
S.s
S.
Std.
f
l1
R/L
C4 SDJCL-27050-11
40
C4
27.0
50.00
L
C4 SDJCR-27050-11
40
C4
27.0
50.00
R
C5 SDJCL-35060-11
50
C5
35.0
60.00
L
C5 SDJCR-35060-11
50
C5
35.0
60.00
R
