C#-SVJCR/L :  93° lead angle, screw lock toolholders for 35° rhombic inserts with 7° clearance angle and CAMFIX (ISO 26623-1 standard) exchangeable shanks.

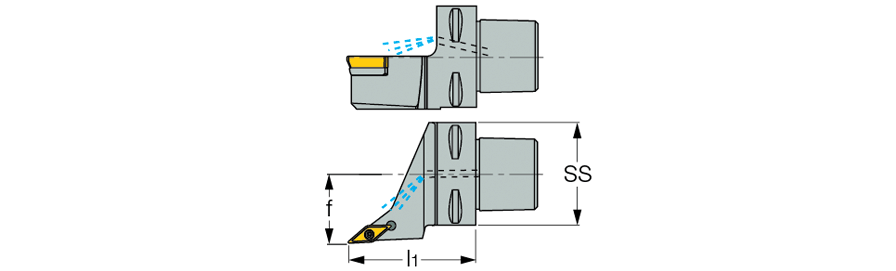

 Right-hand shown

Ext. 35° diamond 93° approach   CAMFIX ISO 26623-1   COOLANT
  Designation
SS
f
l1
R/L
  C4 SVJCL-27050-11  40  27.0  50.00  L
  C4 SVJCR-27050-11  40  27.0  50.00  R
  C4 SVJCL-27050-16  40  27.0  50.00  L
  C4 SVJCR-27050-16  40  27.0  50.00  R
  C5 SVJCR-35060-11  50  35.0  60.00  R
  C5 SVJCL-35060-16  50  35.0  60.00  L
  C5 SVJCR-35060-16  50  35.0  60.00  R
  C6 SVJCL-45065-16  63  45.0  65.00  L
  C6 SVJCR-45065-16  63  45.0  65.00  R
