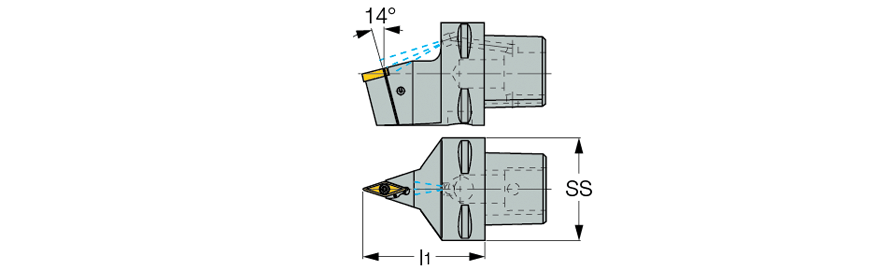

C#-SVVNN-F :  Screw lock 72.5° lead angle toolholders, for 35° negative rhombic inserts with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks. High rigidity in profiling applications due to a special wedge design.


Ext. 35° diamond 72.5° approac   CAMFIX ISO 26623-1   COOLANT
  Designation
SS
l1
  C4 SVVNN-00050-12F  40  50.00
  C5 SVVNN-00060-12F  50  60.00
