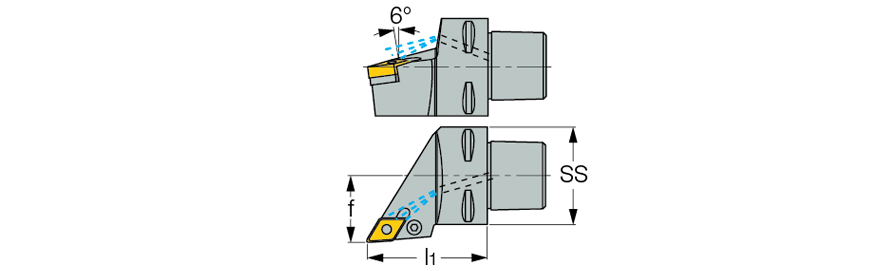

C#-PDJNR/L :  Lever lock, 93° lead angle toolholders, for 55° negative rhombic inserts with CAMFIX (ISO 26623-1 standard) exchangeable, tapered shanks.
 Right-hand shown
 Left-hand shown
Ext. 55° diamond 93° approach   CAMFIX ISO 26623-1   COOLANT
  Designation
SS
f
l1
R/L
  C4 PDJNR-27050-11  40  27.0  50.00  R
  C5 PDJNL-35060-11  50  35.0  60.00  L
  C5 PDJNR-35060-11  50  35.0  60.00  R
