 E93CN-MMT :  Toroidal bull nose endmills with MULTI-MASTER adaptation using CNHT and ENHT inserts. Used for undercutting and finishing cut mainly on steep or vertical walls. The small corner radii exert low cutting forces. Cutting Conditions Machine Power
 Diameter D according to insert r1.0
 For Adaptation Click on Info.

Plunging & recessing   Ramp down   Undercutting   Side plunging

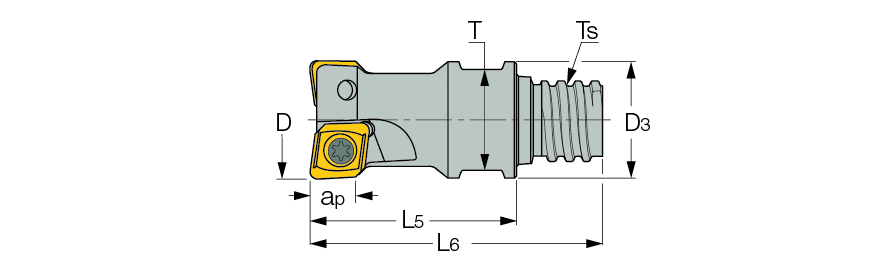

  Designation
D
Z
Ap
L5
L6
Rd°
Ts
D3
T
Kg
  E93CN D16-2-MMT10-07  16.00  2  5.00  27.00  38.64  4.00  T10  15.00  13.0  0.09
  E93CN D20-3-MMT12-07  20.00  3  5.00  27.00  41.00  3.00  T12  19.00  16.0  0.11
