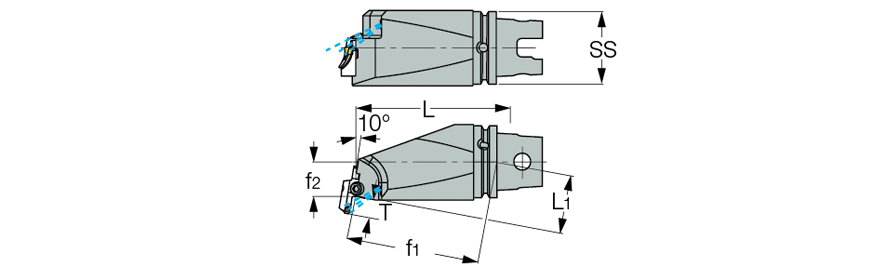

IM63 XMZ MAHUR/L :  Holders for MODULAR-GRIP parting, grooving, turning and facing adapters with ISO 26622-1 XMZ tapered shanks for Mazak Integrex machines. 10° mounting on mill-turn machines.
 T= See specific adapter dimensions

MAHUR/L  COOLANT
  Designation
SS
f1
f2
L
L1
R/L
  IM63 XMZ MAHUL-10  63  113.1  29.00  130.00  49.4  L
  IM63 XMZ MAHUR-10  63  113.1  29.00  130.00  49.4  R

For KM63 XMZ standart details,click on "More Info"
