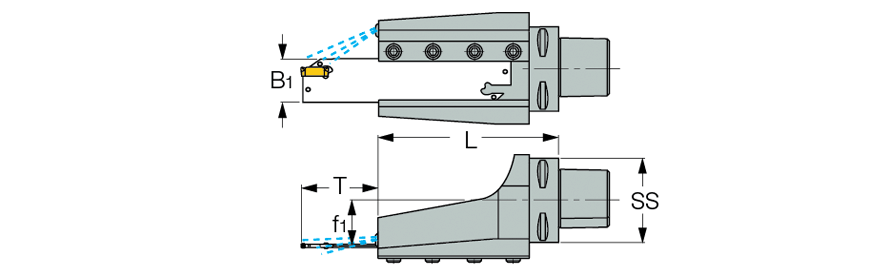

C#-TBK-R/L :  Blocks with CAMFIX (ISO 26623-1 standard) exchangeable, tapered shanks for parting and grooving blades.
 Right-hand shown
T= See specific blade dimensions
 Left-hand shown
COOLANT
  Designation
SS
f1
L
B1
R/L
  C6 TBK-32L  63  32.0  138.00  32.0  L
  C6 TBK-32R  63  32.0  138.00  32.0  R
  C8 TBK-32R  80  40.5  147.00  32.0  R
  C8 TBK-52R  80  40.5  161.00  52.0  R
