 C-MVJNR/L :  Comlock holders for negative 35 diamond inserts. Compatible with COROMANT CAPTO® system. Cutting Conditions Machine Power
 The trademark COROMANT CAPTO is owned by Sandvik Intellectual Property AB

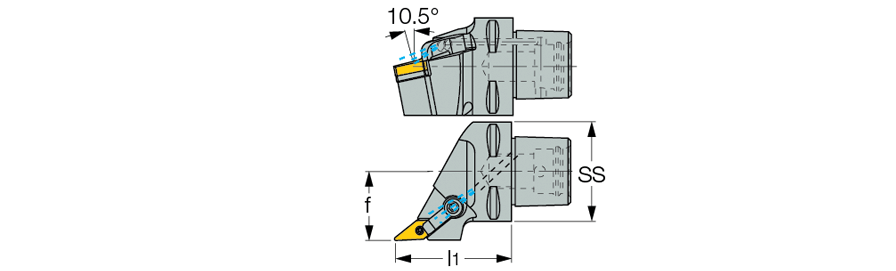

Ext. 35° diamond 93° approach
  Designation
S.s		 S.
Std.
f
l1
R/L
  C4 MVJNL-27050-16  40  C4  27.0  50.00  L
  C4 MVJNR-27050-16  40  C4  27.0  50.00  R
  C5 MVJNL-35060-16  50  C5  35.0  60.00  L
  C5 MVJNR-35060-16  50  C5  35.0  60.00  R
  C6 MVJNL-45065-16  63  C6  45.0  65.00  L
  C6 MVJNR-45065-16  63  C6  45.0  65.00  R
