MM EFS :  FINISHRED, combination of roughing and finishing interchangeable solid carbide endmill heads. Part of the MULTI-MASTER system.


Shouldering   Slotting   Ramp down   Helical interpolation

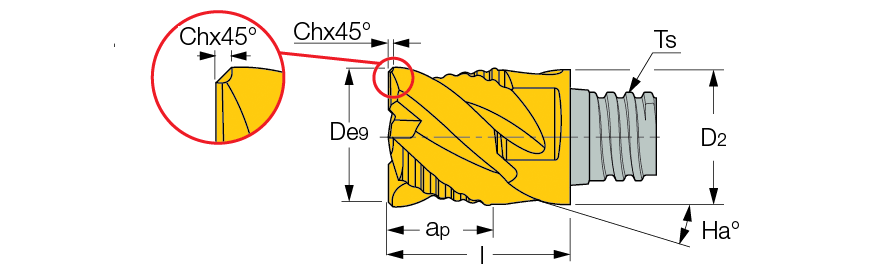

  Designation
D
Flute
ap
Ch
Ts
D2
l
Ha°		 fz
(min)		 fz
(max)
  Grade
  MM EFS.312B20-4T05  .00  4  .00  .012  T05  .00  .00  .0  .00  .00 IC908
  MM EFS.375B27-4T06  .00  4  .00  .012  T06  .00  .00  .0  .00  .00 IC908
  MM EFS.500B37-4T08  12.70  4  9.40  0.40  T08  12.40  16.50  45.0  .04  .00 IC908
  MM EFS.625B47-4T10  .00  4  .00  .024  T10  .00  .00  .0  .00  .00 IC908
  MM EFS.750B62-4T12  .00  4  .00  .024  T12  .00  .00  .0  .00  .00 IC908
  MM EFS200B15-4T12  20.00  4  15.00  0.60  T12  18.30  25.50  45.0  .05  .11 IC908
  MM EFS1.00B86-4T15  25.40  4  22.00  0.60  T15  23.90  37.00  45.0  .00  .00 IC908

For Clamping keys (should be ordered separately), tightening torques and clamping instructions, click on "More Info".
Do not apply lubricant to the threaded connection.
