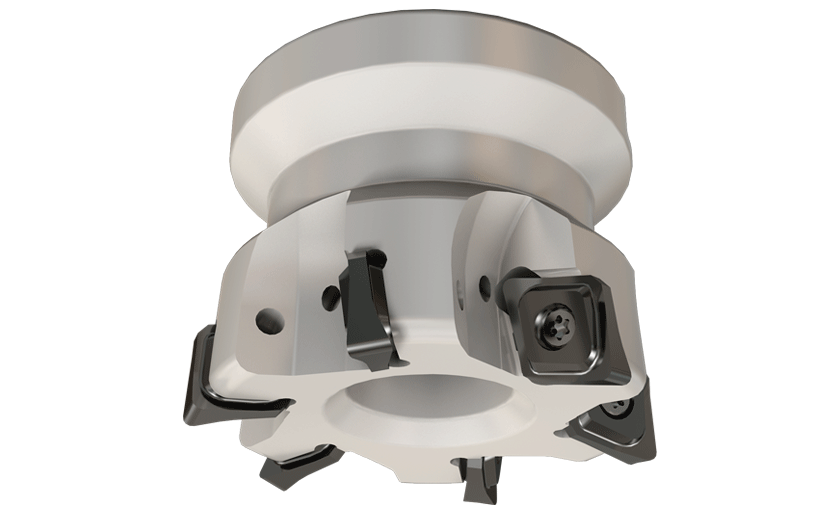

 F93CN :  Toroidal bull nose face mills using ENHT... inserts. Used for undercutting and finishing cut mainly on steep or vertical walls. The small corner radii exert low cutting forces. Cutting Conditions Machine Power

 For Adaptation Click on Info.

Shouldering   Plunging & recessing   Ramp down   Undercutting   Side plunging

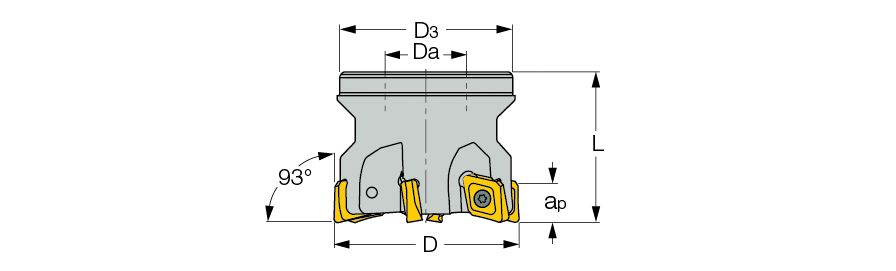

  Designation
D
Z
Ap
L
Da
Rd°
Arbor
Kg
Po
  F93CN D52-6-22-R-10  52.00  6  8.00  40.00  22.00  2.50  A  0.44 -
  F93CN D66-7-22-R-10  66.00  7  8.00  40.00  22.00  1.80  A  0.67 -
  F93CN D80-8-27-R-10  80.00  8  8.00  50.00  27.00  1.50  B  0.96 -
