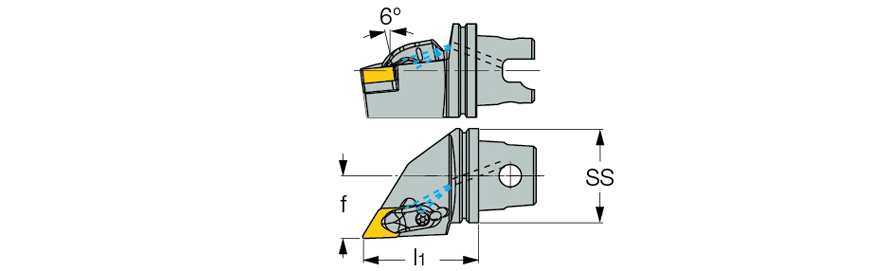

IM-DDJNR/L :  R-clamp, turning tools with ISO 26622-1(*) tapered shank, for negative DNMG inserts.
 Right-hand shown
 Left-hand shown
ISO 26622-1   COOLANT
  Designation
SS
f
l1
R/L
  IM40 DDJNL-15  40  27.0  60.00  L
  IM40 DDJNR-15  40  27.0  60.00  R
  IM50 DDJNL-15  50  35.0  60.00  L
  IM50 DDJNR-15  50  35.0  60.00  R
  IM63 DDJNL-15  63  45.0  65.00  L
  IM63 DDJNR-15  63  45.0  65.00  R

(*) Tools with orientation holes in the flange groove can be supplied on request
