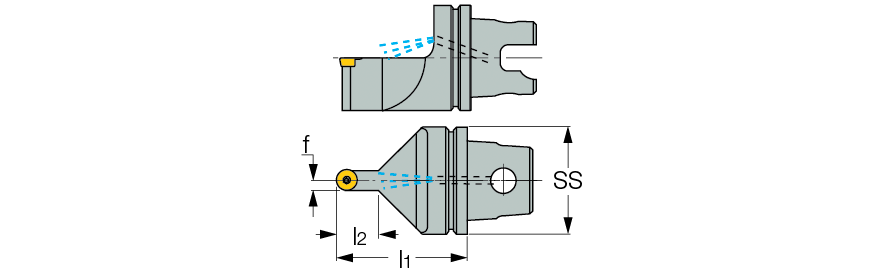

IM-SRDCN :  Screw lock toolholders for round inserts with 7° clearance angle and ISO 26622-1(*) tapered shanks.


ISO 26622-1   SRDCN  COOLANT
  Designation
SS
f
l1
l2
  IM40 SRDCN-08  40  4.0  40.00  13.0
  IM40 SRDCN-10  40  4.4  40.00  14.0

(*) Tools with orientation holes in the flange groove can be supplied on request
