IM-DTGNR/L :  91° lead angle R-clamp toolholders with ISO 26622-1 tapered shanks, for negative triangular inserts.

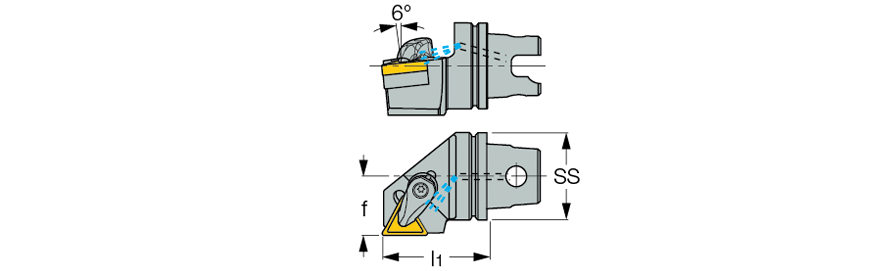

 Right-hand shown

Ext. 60° triangle 91° approach   ISO 26622-1   COOLANT
  Designation
SS
f
l1
R/L
  IM40 DTGNL-22  40  27.0  40.00  L
  IM40 DTGNR-22  40  27.0  40.00  R
  IM50 DTGNL-22  50  35.0  50.00  L
  IM50 DTGNR-22  50  35.0  50.00  R
  IM63 DTGNL-22  63  45.0  60.00  L
  IM63 DTGNR-22  63  45.0  60.00  R

Tools with orientation holes in the flange groove can be supplied on request
