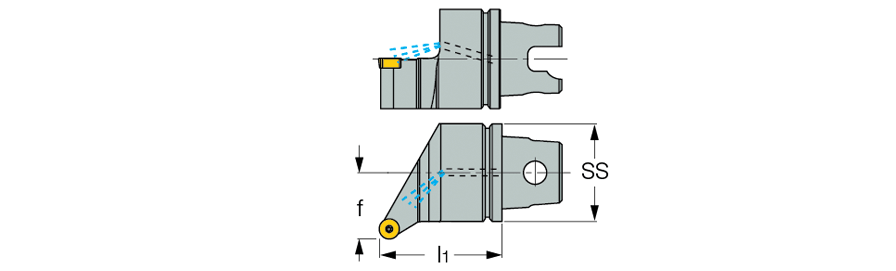

IM-SRGCR/L :  Screw lock toolholders for round inserts with 7° clearance angle and ISO 26622-1 tapered shanks.
 Right-hand shown

Ext. round face & turn   ISO 26622-1   COOLANT
  Designation
SS
f
l1
R/L
  IM40 SRGCL-08  40  27.0  40.00  L
  IM40 SRGCR-08  40  27.0  40.00  R
  IM40 SRGCL-10  40  27.0  40.00  L
  IM40 SRGCR-10  40  27.0  40.00  R
  IM50 SRGCL-12  50  35.0  50.00  L
  IM50 SRGCR-12  50  35.0  50.00  R

Tools with orientation holes in the flange groove can be supplied on request
