IM-MCLNR/L :  95° lead angle, toolholders, for negative, 80° inserts with ISO 26622-1(*) tapered shank.

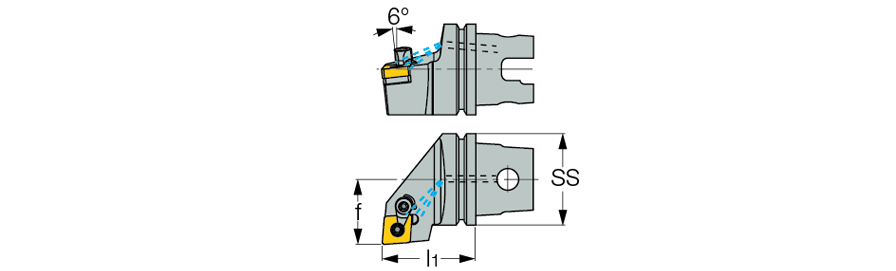

 Right-hand shown

ISO 26622-1   COOLANT
  Designation
SS
f
l1
R/L
  IM63 MCLNL-19  63  45.0  65.00  L
  IM63 MCLNR-19  63  45.0  65.00  R

(*) Tools with orientation holes in the flange groove can be supplied on request
