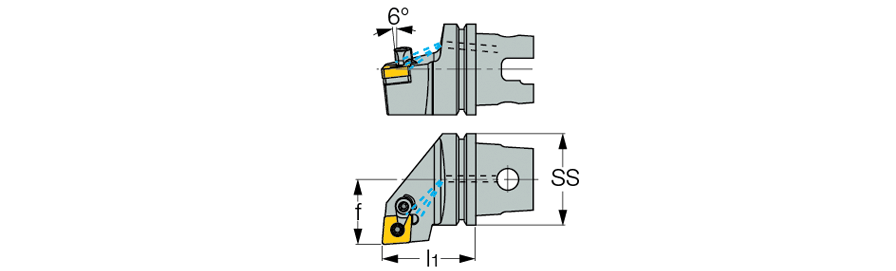

IM-MCLNR/L :  95° lead angle toolholders, for negative, 80° inserts with ISO 26622-1 tapered shank.
 Right-hand shown

Ext. 80° diamond 95° approach   Radial Turning   ISO 26622-1   COOLANT
  Designation
SS
f
l1
R/L
  IM63 MCLNL-19  63  45.0  65.00  L
  IM63 MCLNR-19  63  45.0  65.00  R

Tools with orientation holes in the flange groove can be supplied on request
