IM-SCLCR/L :  Screw lock toolholders with ISO 26622-1 tapered shanks, for 80° rhombic inserts with 7° clearance angle.

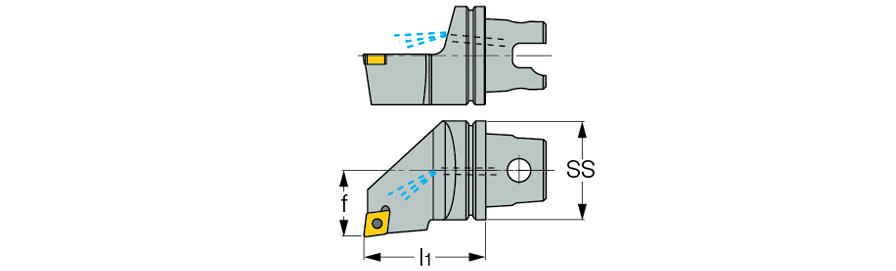

 Right-hand shown

Ext. 80° diamond 95° approach   Radial Turning   ISO 26622-1   COOLANT
  Designation
SS
f
l1
R/L
  IM40 SCLCL-09  40  27.0  50.00  L

Tools with orientation holes in the flange groove can be supplied on request
