IM-PDJNR/L :  Lever lock turning tools with ISO 26622-1 tapered shank, for DNMG negative inserts.

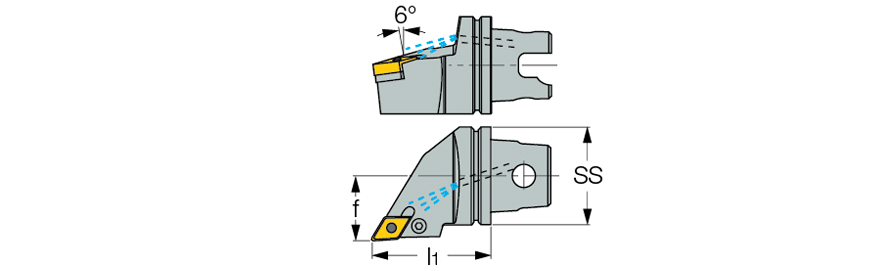

 Right-hand shown

Ext. 55° diamond 93° approach   ISO 26622-1   COOLANT
  Designation
SS
f
l1
R/L
  IM40 PDJNL-11  40  27.0  50.00  L
  IM40 PDJNR-11  40  27.0  50.00  R
  IM50 PDJNL-11  50  35.0  60.00  L

Tools with orientation holes in the flange groove can be supplied on request
