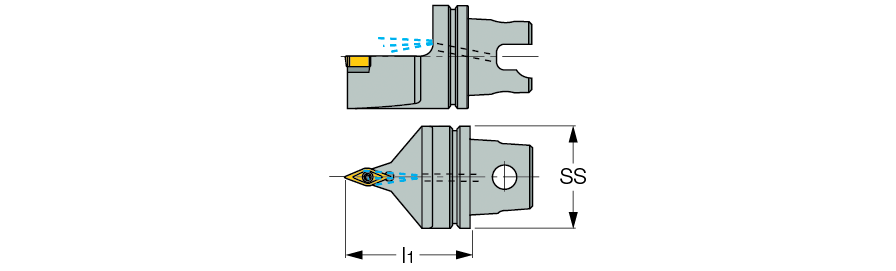

IM-SVVCN :  72.5° lead angle, screw lock toolholders for 35° rhombic inserts with 7° clearance angle and ISO 26622-1(*) tapered shank.


ISO 26622-1   COOLANT
  Designation
SS
l1
  IM40 SVVCN-11  40  40.00
  IM50 SVVCN-16  50  50.00

(*) Tools with orientation holes in the flange groove can be supplied on request
