HM90 EAL-22 :  Long reach endmills used for machining aluminum, with HM90 APCR 2206... inserts (HELIALU).


Shouldering   Slotting   Ramp down   Helical interpolation   Plunging & recessing   COOLANT

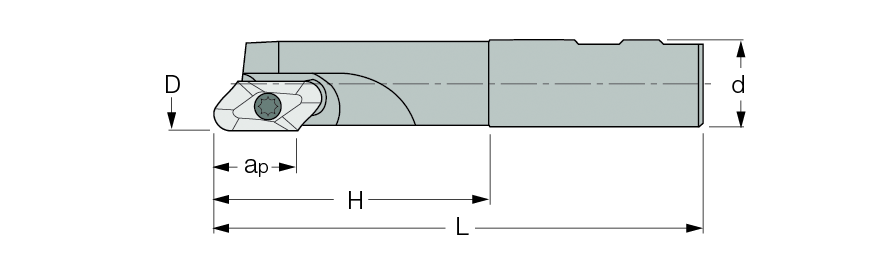

  Designation
D
Z
H
L
d
ShankC-Cylindrical, W-Weldon		 RPM
max
Rd°
Kg
ap
  HM90 EAL-D25-C25-L140-22  25.00  1  80.0  140.00  25.00  C  7000  25.0  0.50  20.50
  HM90 EAL-D25-W25-L140-22  25.00  1  80.0  140.00  25.00  W  7000  25.0  0.49  20.50
  HM90 EAL-D32-W32-L160-22  32.00  1  100.0  160.00  32.00  W  7000  22.0  0.88  20.50
  HM90 EAL-D40-C40-L200-22  40.00  2  80.0  200.00  40.00  C  7000  14.0  1.76  20.50
  HM90 EAL-D40-W40-L160-22  40.00  2  80.0  160.00  40.00  W  7000  14.0  0.87  20.50

DOC changes according to insert radius. ap 20.5 is the value for HM90 APCR 220650.
Insert tightening torque: 600 Nxcm
For adaptation click on "More Info".
