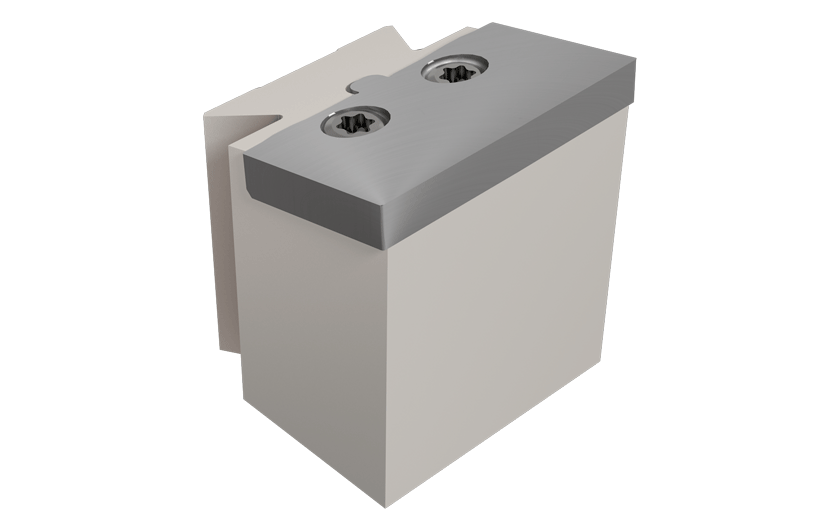

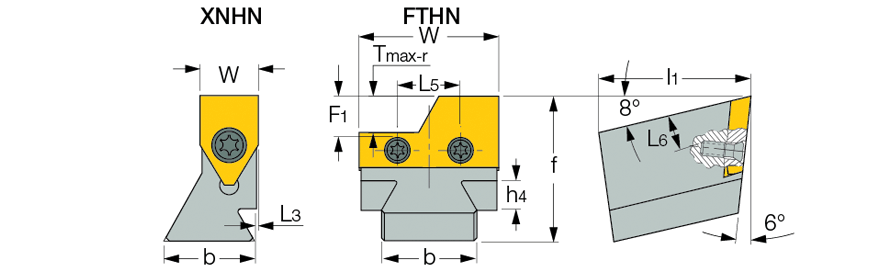

DT-A XNHN/R/L& DT-A FTHN/R/L :
Semi-standard dovetail type holders, for XNUW and FTB wide profiling inserts.
Designation
b
f
h4
l1
L3
W
F1
Tmax-r
l3
L5
DT20A XNHN-10
20.0
32.0
7.0
40.00
-
10.40
7.1
6.00
5.9
-
DT20A XNHL-10
20.0
32.0
7.0
40.00
1.00
10.40
7.1
6.00
5.9
-
DT20A XNHR-10
20.0
32.0
7.0
40.00
1.00
10.40
7.1
6.00
5.9
-
DT20A XNHN-13
20.0
32.0
7.0
40.00
-
13.08
7.3
6.00
5.0
-
DT20A XNHL-13
20.0
32.0
7.0
40.00
1.00
13.08
7.3
6.00
5.0
-
DT20A XNHR-13
20.0
32.0
7.0
40.00
1.00
13.08
7.3
6.00
5.0
-
DT20A XNHN-14
20.0
32.0
7.0
40.00
-
14.61
4.5
3.50
3.4
-
DT20A XNHN-20
20.0
32.0
7.0
40.00
-
20.60
7.4
6.00
5.0
-
DT20A XNHL-20
20.0
32.0
7.0
40.00
2.00
20.60
7.4
6.00
5.0
-
DT20A XNHR-20
20.0
32.0
7.0
40.00
2.00
20.60
7.4
6.00
5.0
-
DT20A XNHN-24
20.0
32.0
7.0
40.00
-
24.60
9.0
7.00
6.0
-
DT20A FTHN-30
20.0
32.0
7.0
40.00
-
30.40
11.6
10.00
9.0
14.00
DT20A FTHN-35
20.0
32.0
7.0
40.00
-
35.40
11.6
10.00
9.0
14.00
DT28A XNHN-13
28.0
32.0
9.0
40.00
-
13.08
7.3
6.00
5.0
-
DT28A XNHL-13
28.0
32.0
9.0
40.00
1.00
13.08
7.3
6.00
5.0
-
DT28A XNHR-13
28.0
32.0
9.0
40.00
1.00
13.08
7.3
6.00
5.0
-
DT28A XNHN-14
28.0
32.0
9.0
40.00
-
14.61
4.5
3.50
3.4
-
DT28A XNHL-14
28.0
32.0
9.0
40.00
1.00
14.61
4.5
3.50
3.4
-
DT28A XNHR-14
28.0
32.0
9.0
40.00
1.00
14.61
4.5
3.50
3.4
-
DT28A XNHN-20
28.0
32.0
9.0
40.00
-
10.60
7.4
6.00
5.0
-
DT28A XNHL-20
28.0
32.0
9.0
40.00
2.00
20.60
7.4
6.00
5.0
-
DT28A XNHR-20
28.0
32.0
9.0
40.00
2.00
20.60
7.4
6.00
5.0
-
DT28A XNHN-24
28.0
32.0
9.0
40.00
-
24.60
9.0
7.00
6.0
-
DT28A XNHL-24
28.0
32.0
9.0
40.00
2.00
24.60
9.0
7.00
6.0
-
DT28A XNHR-24
28.0
32.0
9.0
40.00
2.00
24.60
9.0
7.00
6.0
-
DT28A FTHN-30
28.0
32.0
9.0
40.00
-
30.40
11.6
10.00
9.0
14.00
DT28A FTHN-35
28.0
32.0
9.0
40.00
-
35.40
11.6
10.00
9.0
14.00
DT28A FTHN-40
28.0
32.0
9.0
40.00
-
40.40
11.6
10.00
9.0
18.00
DT28A FTHN-45
28.0
32.0
9.0
40.00
-
45.40
11.6
10.00
9.0
18.00
DT40A XNHN-13
40.0
36.0
11.0
50.00
-
13.08
7.3
5.00
5.0
-
DT40A XNHL-13
40.0
36.0
11.0
50.00
1.00
13.08
7.3
6.00
5.0
-
DT40A XNHR-13
40.0
36.0
11.0
50.00
1.00
13.08
7.3
6.00
5.0
-
DT40A XNHN-14
40.0
36.0
11.0
50.00
-
14.61
4.5
3.50
3.4
-
DT40A XNHL-14
40.0
36.0
11.0
50.00
1.00
14.61
4.5
3.50
3.4
-
DT40A XNHR-14
40.0
36.0
11.0
50.00
1.00
14.61
4.5
3.50
3.4
-
DT40A XNHN-20
40.0
36.0
11.0
50.00
-
20.60
7.4
6.00
5.0
-
DT40A XNHL-20
40.0
36.0
11.0
50.00
2.00
20.60
7.4
6.00
5.0
-
DT40A XNHR-20
40.0
36.0
11.0
50.00
2.00
20.60
7.4
6.00
5.0
-
DT40A XNHN-24
40.0
36.0
11.0
50.00
-
24.60
9.0
7.00
6.0
-
DT40A XNHL-24
40.0
36.0
11.0
50.00
2.00
24.60
9.0
7.00
6.0
-
DT40A XNHR-24
40.0
36.0
11.0
50.00
2.00
24.60
9.0
7.00
6.0
-
DT40A FTHN-30
40.0
36.0
11.0
50.00
-
30.40
11.6
10.00
9.0
14.00
DT40A FTHL-30
40.0
36.0
11.0
50.00
3.00
30.40
11.6
10.00
9.0
14.00
DT40A FTHR-30
40.0
36.0
11.0
50.00
3.00
30.40
11.6
10.00
9.0
14.00
DT40A FTHN-35
40.0
36.0
11.0
50.00
-
35.40
11.6
10.00
9.0
14.00
DT40A FTHL-35
40.0
36.0
11.0
50.00
3.00
35.40
11.6
10.00
9.0
14.00
DT40A FTHR-35
40.0
36.0
11.0
50.00
3.00
35.40
11.6
10.00
9.0
14.00
DT40A FTHN-40
40.0
36.0
11.0
50.00
-
40.40
11.6
10.00
9.0
14.00
DT40A FTHN-45
40.0
36.0
11.0
50.00
-
45.40
11.6
10.00
9.0
14.00
