IM63 XMZ SLANR/L-TANG :  Holders for LNMX-HT - high production cutting, tangentially screw clamped inserts with ISO 26622-1 XMZ tapered shank for Mazak Integrex machines.

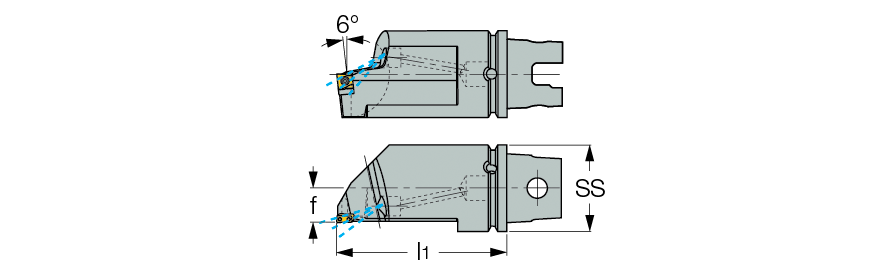

 Right-hand shown

ISO 26622-1   COOLANT
  Designation
SS
l1
f
R/L
  IM63 XMZ SLANL-25110-15  63  110.00  25.0  L

For shank standard details, click on "More Info"
ap max for facing 3.8 mm
