H490 F90AX-17 :

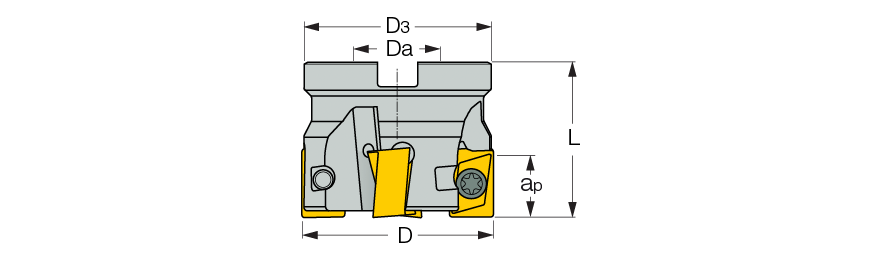

HELIDO 90° Face Mills Using the H490 ANKX 17.. Double-Sided, Rectan gular Inserts with 4 Helical Cutting Edges, Diameter range 32-50 mm
For Adaptation Click on Info.
Designation
D
Z
Ap
L
Da
Arbor
Rd°
Cool
H490 F90AX D040-3-16-17
40.00
3
16.30
40.00
16.00
A
4.40
Y
H490 F90AX D050-3-22-17
50.00
3
16.30
40.00
22.00
A
3.80
Y
H490 F90AX D050-4-22-17
50.00
4
16.30
40.00
22.00
A
3.80
Y
H490 F90AX D063-4-25.4-17
63.00
4
16.30
50.00
25.40
A
2.00
Y
H490 F90AX D063-4-27-17
63.00
4
16.30
50.00
27.00
A
2.00
Y
H490 F90AX D063-6-25.4-17
63.00
6
16.30
50.00
25.40
A
2.00
Y
H490 F90AX D063-6-27-17
63.00
6
16.30
50.00
27.00
A
2.00
Y
H490 F90AX D080-5-25.4-17
80.00
5
16.30
50.00
25.40
B
1.50
Y
H490 F90AX D080-5-27-17
80.00
5
16.30
50.00
27.00
B
1.50
Y
H490 F90AX D080-7-25.4-17
80.00
7
16.30
50.00
25.40
B
1.50
Y
H490 F90AX D080-7-27-17
80.00
7
16.30
50.00
27.00
B
1.50
Y
H490 F90AX D100-5-32-17
100.00
5
16.30
50.00
32.00
B
1.00
Y
H490 F90AXD100-5-31.75-17
100.00
5
16.30
50.00
31.75
B
1.00
Y
H490 F90AX D100-8-32-17
100.00
8
16.30
50.00
32.00
B
1.00
Y
H490 F90AXD100-8-31.75-17
100.00
8
16.30
50.00
31.75
B
1.00
Y
H490 F90AX D125-7-38.1-17
125.00
7
16.30
63.00
38.10
B
-
Y
H490 F90AX D125-7-40-17
125.00
7
16.30
63.00
40.00
B
-
Y
H490 F90AX D125-10-40-17
125.00
10
16.30
63.00
40.00
B
-
Y
H490 F90AXD125-10-38.1-17
125.00
10
16.30
63.00
38.10
B
-
Y
H490 F90AXD160-12-50.8-17
125.00
12
16.30
63.00
50.80
C
-
N
H490 F90AX D160-8-40-17
160.00
8
16.30
63.00
40.00
C
-
N
H490 F90AX D160-8-50.8-17
160.00
8
16.30
63.00
50.80
C
-
N
H490 F90AX D160-12-40-17
160.00
12
16.30
63.00
40.00
C
-
N
H490 F90AX D200-10-60-17
200.00
10
16.30
63.00
60.00
C
-
N
H490 F90AX D250-12-60-17
250.00
12
16.30
63.00
60.00
C
-
N
H490 F90AX D315-16-60-17
315.00
16
16.30
63.00
60.00
C
-
N
