H490 E90AX-17 :
HELIDO 90° endmills using the H490 ANKX 17...double-sided rectangular inserts with 4 helical cutting edges. May be used for heavy applications. Diameter range 32-50 mm
For Adaptation Click on Info.

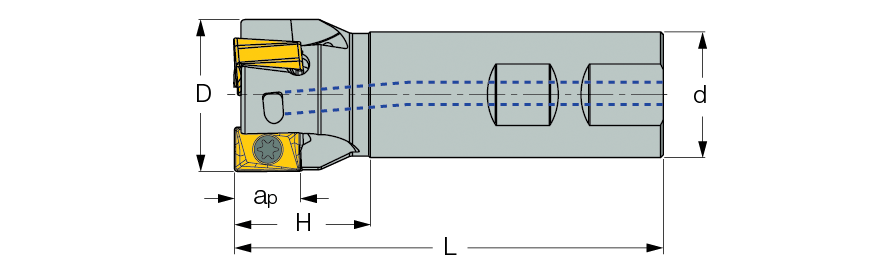

Designation
D
Z
Ap
L
H
d
Shank
Rd°
Cool
H490 E90AX D32-2-C32-17
32.00
2
16.30
130.00
44.00
32.00
C
6.50
Y
H490 E90AX D32-2-W32-17
32.00
2
16.30
95.00
30.00
32.00
W
6.50
Y
H490 E90AX D40-3-C32-17
40.00
3
16.30
130.00
-
32.00
C
4.40
Y
H490 E90AX D40-3-W32-17
40.00
3
16.30
110.00
-
32.00
W
4.40
Y
H490 E90AX D50-4-C32-17
50.00
4
16.30
120.00
-
32.00
C
3.80
Y
