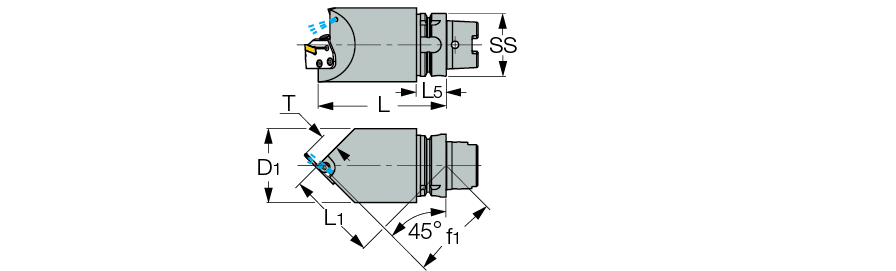

HSK A-WH-MAHDR/L-45 :  Holders for MODULAR-GRIP, parting, grooving and facing adapters with HSK tapered shanks. Used for 45° mounting on turn-mill machines.
 T= See specific adapter dimensions
Right-hand shown

MAHDR-45-1  MAHDR-45-2  COOLANT
  Designation
SS
L
L1
f1
D1
R/L
  HSK A63WH-MAHDR-45  63  130.00  91.9  89.0  75.0  R
  HSK A100WH-MAHDL-45  100  140.00  99.0  97.6  100.0  L

A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)
Complies with the ICTM and HSK-T standards, click on "More Info"
