ETS-LN08 :
MINI-TANGSLOT, Grooving and slitting cutters, carrying tangentially clamped inserts with 4 cutting edges.

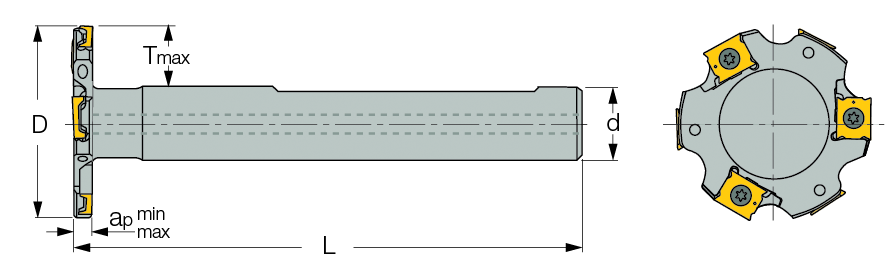

Designation
D
ap
min
ap
max
Tmax
d
Shank
L
Z
Zeff
Kg
ETS D032-03-W16-LN08
32.00
3.00
3.00
8.00
16.00
W
90.00
4
2
0.59
ETS D032-04-W16-LN08
32.00
4.00
4.50
8.00
16.00
W
90.00
4
2
0.14
ETS D032-05-W16-LN08
32.00
5.00
5.50
8.00
16.00
W
90.00
4
2
0.14
ETS D032-06-W16-LN08
32.00
6.00
6.50
8.00
16.00
W
90.00
4
2
0.14
ETS D040-03-W16-LN08
40.00
3.00
3.00
12.00
16.00
W
104.00
6
3
0.16
ETS D040-04-W16-LN08
40.00
4.00
4.50
12.00
16.00
W
104.00
6
3
0.16
ETS D040-05-W16-LN08
40.00
5.00
5.50
12.00
16.00
W
104.00
6
3
0.16
ETS D040-06-W16-LN08
40.00
6.00
6.50
12.00
16.00
W
104.00
6
3
0.17
ETS D050-03-W20-LN08
50.00
3.00
3.00
15.00
20.00
W
110.00
8
4
0.26
ETS D050-04-W20-LN08
50.00
4.00
4.50
15.00
20.00
W
110.00
8
4
0.27
ETS D050-05-W20-LN08
50.00
5.00
5.50
15.00
20.00
W
110.00
8
4
0.28
ETS D050-06-W20-LN08
50.00
6.00
6.50
15.00
20.00
W
110.00
8
4
0.29
ETS D063-03-W20-LN08
63.00
3.00
3.00
21.50
20.00
W
110.00
10
5
0.28
ETS D063-04-W20-LN08
63.00
4.00
4.50
21.50
20.00
W
110.00
10
5
0.29
ETS D063-05-W20-LN08
63.00
5.00
5.50
21.50
20.00
W
110.00
10
5
0.31
ETS D063-06-W20-LN08
63.00
6.00
6.50
21.50
20.00
W
110.00
10
5
0.32
Adjustable overhang design
