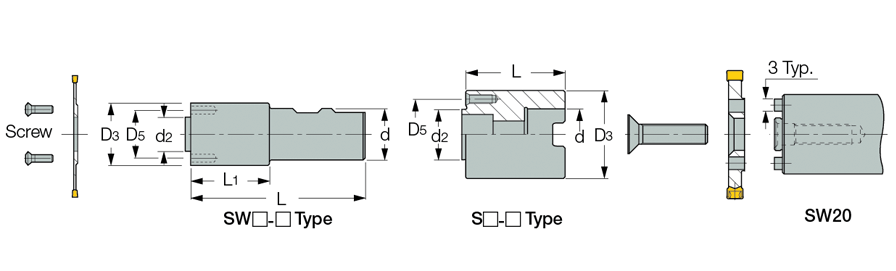

| SW/S : SW/S - Drive shanks for SELF-GRIP slitting cutters. |
  |
|
|
|
|
| Designation |
d |
D3 |
d2 |
D5 |
L1 |
L |
Kg |
|
SW 20
|
20.00 |
20.00 |
8.00 |
14.40 |
- |
100.00 |
0.22 |
|
SW 25-23
|
25.00 |
23.00 |
6.00 |
13.60 |
25.0 |
110.00 |
0.40 |
|
SW 25-28
|
25.00 |
28.00 |
8.00 |
18.00 |
25.0 |
110.00 |
0.43 |
|
SW 25-32
|
25.00 |
32.00 |
10.00 |
22.00 |
25.0 |
110.00 |
0.47 |
|
SW 32-40
|
32.00 |
40.00 |
22.00 |
32.00 |
30.0 |
120.00 |
0.84 |
|
S 32-55
|
32.00 |
55.00 |
32.00 |
45.00 |
- |
60.00 |
0.82 |
|
S 40-80
|
40.00 |
80.00 |
40.00 |
63.00 |
- |
60.00 |
1.81 |

|
|
|
|
