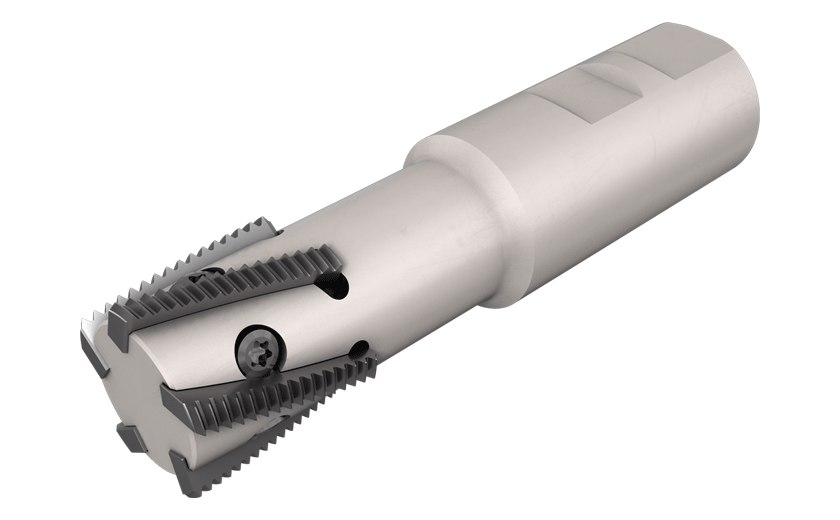

| MTSRH (endmills) : End mills for with coolant holes for helical threading inserts |
|
|
|
|
|

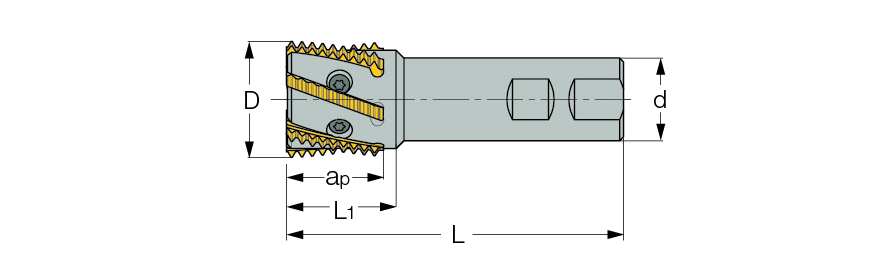

| Designation |
D |
ap |
d |
L |
L1 |
Z |
Shank |
Kg |
|
MTSRH 23-2
|
23.00 |
27.00 |
25.00 |
110.00 |
50.0 |
2 |
W |
0.36 |
|
MTSRH 32-5
|
32.00 |
32.00 |
32.00 |
130.00 |
60.0 |
5 |
W |
0.70 |
|
MTSRH 45-6
|
45.00 |
37.00 |
32.00 |
130.00 |
- |
6 |
W |
0.88 |
|
ISCAR can provide special contour inserts on request.
