	Face Turning & Profiling
Sub Application

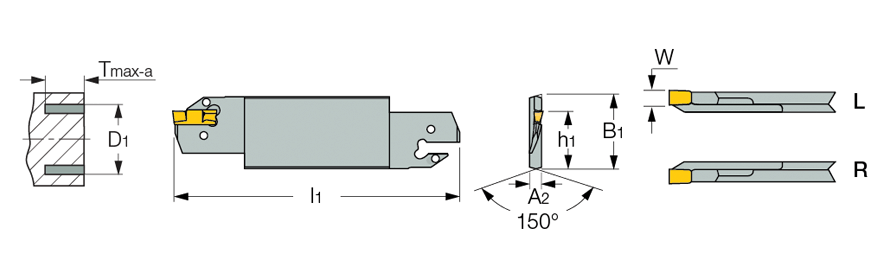

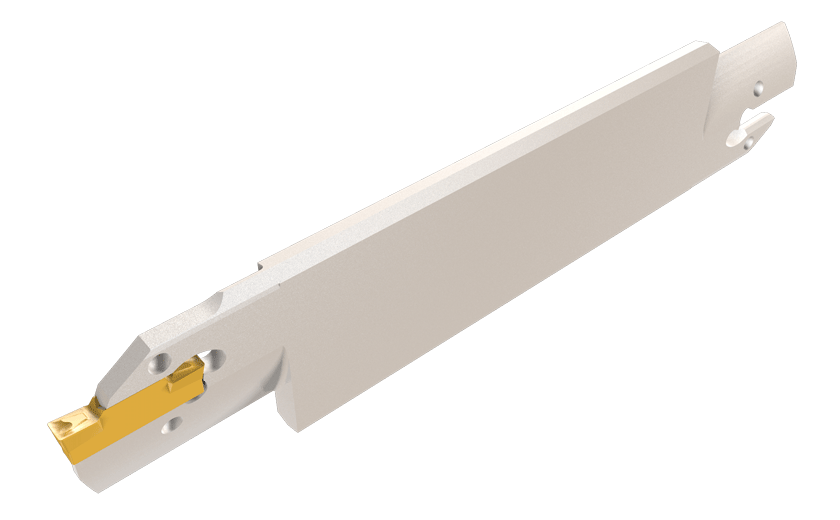

HFFR/L-T : Blades for face machining Dmin 48mm.

Designation	W	D1 min	Tmax-a	D1 max	l1	h1	B1	A2	R/L
HFFL 48-4T25	4.00	48.0	25.0	60.0	150.00	24.8	32.0	5.2	L
HFFR 48-4T25	4.00	48.0	25.0	60.0	150.00	24.8	32.0	5.2	R
HFFL 60-4T25	4.00	60.0	25.0	75.0	150.00	24.8	32.0	5.2	L
HFFR 60-4T25	4.00	60.0	25.0	75.0	150.00	24.8	32.0	5.2	R
HFFL 75-4T30	4.00	75.0	30.0	140.0	150.00	24.8	32.0	5.2	L
HFFR 75-4T30	4.00	75.0	30.0	140.0	150.00	24.8	32.0	5.2	R
HFFL 140-4T30	4.00	140.0	30.0	1,500.0	150.00	24.8	32.0	3.2	L
HFFR 140-4T30	4.00	140.0	30.0	1,500.0	150.00	24.8	32.0	3.2	R
HFFL 70-5T32	5.00	70.0	32.0	95.0	150.00	24.8	32.0	5.2	L
HFFR 70-5T32	5.00	70.0	32.0	95.0	150.00	24.8	32.0	5.2	R
HFFL 95-5T35	5.00	95.0	35.0	130.0	150.00	24.8	32.0	5.2	L
HFFR 95-5T35	5.00	95.0	35.0	130.0	150.00	24.8	32.0	5.2	R
HFFL 130-5T38	5.00	130.0	38.0	180.0	150.00	24.8	32.0	5.2	L
HFFR 130-5T38	5.00	130.0	38.0	180.0	150.00	24.8	32.0	5.2	R
HFFL 180-5T38	5.00	180.0	38.0	1,500.0	150.00	24.8	32.0	4.0	L
HFFR 180-5T38	5.00	180.0	38.0	1,500.0	150.00	24.8	32.0	4.0	R
HFFL 90-6T32	6.00	90.0	32.0	180.0	150.00	24.8	32.0	5.2	L
HFFR 90-6T32	6.00	90.0	32.0	180.0	150.00	24.8	32.0	5.2	R
HFFL 180-6T38	6.00	180.0	38.0	400.0	150.00	24.8	32.0	5.2	L
HFFR 180-6T38	6.00	180.0	38.0	400.0	150.00	24.8	32.0	5.2	R
