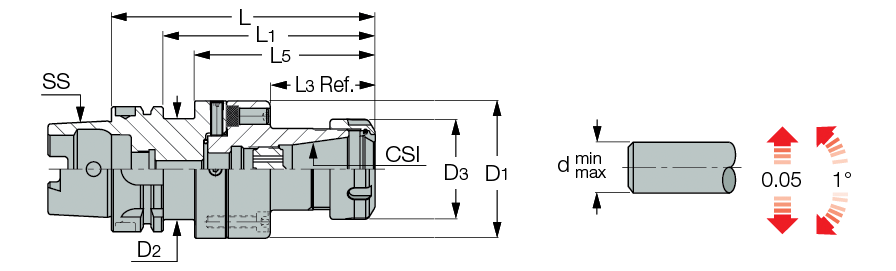

 ADJ HSK A-ER :  DIN 6499 ER center alignment collet chuck with a DIN69893 form A HSK taper shank. Cutting Conditions Machine Power
 Radial adj. 0.1mm. Angular adj. 1°

HSK   Collet chucks   Center alignment devices
  Designation
S.s
C.Si		 d
min		 d
max
D3
D1
D2
L
L1
L3
Kg
  ADJ HSK A 63 D70 ER32  63  ER32  2.0  20.0  50.00  70.0  46.00  134.50  108.5  52.50  1.33
  ADJ HSK A 100 D70 ER32  100  ER32  2.0  20.0  50.00  70.0  -  129.50  100.5  52.50  3.81
