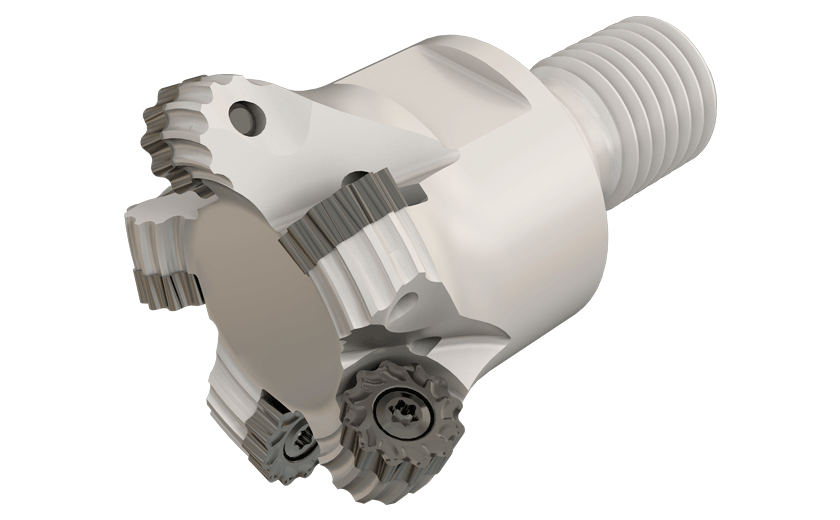

 ERW-M :  SHREDMILL-milling cutters which can carry round inserts with serrated cutting edges or regular round inserts. Used for rough machining applications on small dies and low power machines. Cutting Conditions Machine Power

 For Adaptation Click on Info.

Ramp down   Plunging & recessing   Profiling   Facing

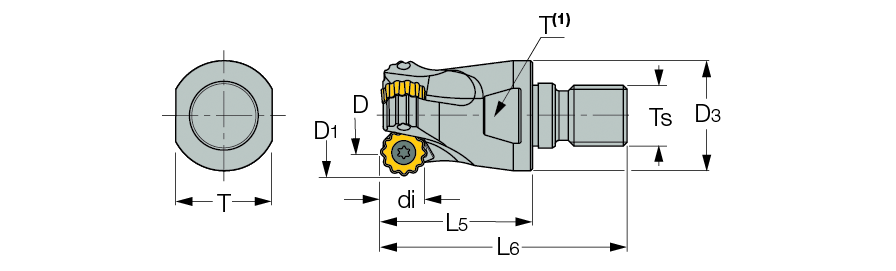

  Designation
D1
D
di
Z
D3
L6
L5
T
Ts
Rd°
Kg
  ERW D013A025-2-M12-12  25.0  13.00  12.000  2  21.00  57.00  35.00  17.0  M12  2.00  0.13
  ERW D020A032-3-M16-12  32.0  20.00  12.000  3  29.00  65.00  40.00  25.0  M16  7.00  0.47
  ERW D028A040-4-M16-12  40.0  28.00  12.000  4  29.00  65.00  40.00  25.0  M16  5.00  0.30
