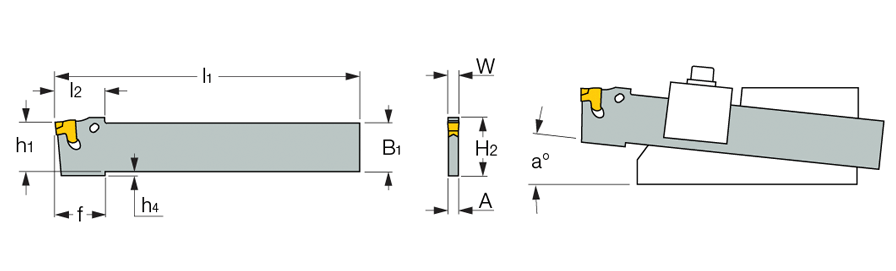

TGFS :
Blades for multi-spindle machines - replacement for HSS and Brazed tools, using TANG-GRIP tangentially clamped inserts.
ETG Extractor to be Order separately.
Designation
Ord
W
min
W
max
B1
A
l1
H2
h1
l2
f
h4
D
max
a°
TGFS 0-17-2
1
1.80
2.50
17.2
1.65
110.00
19.0
17.2
-
18.00
1.8
35.0
0
TGFS 0-17-3
2
2.80
3.50
17.2
2.50
110.00
19.0
17.2
-
18.00
1.8
60.0
0
TGFS 5-17-2
3
1.80
2.50
17.4
1.65
110.00
20.7
17.5
18.0
18.00
1.5
35.0
5
TGFS 5-17-3
4
2.80
3.50
17.4
2.50
110.00
20.7
17.5
18.0
18.00
1.5
60.0
5
TGFS 5-17-4
5
3.70
4.50
17.4
3.40
110.00
20.7
17.5
18.0
18.00
1.5
60.0
5
TGFS 5-22-2
6
1.80
2.50
22.2
1.65
150.00
24.1
22.4
18.0
-
-
50.0
5
TGFS 5-22-3
7
2.80
3.50
22.2
2.50
150.00
24.1
22.4
18.0
-
-
75.0
5
TGFS 5-22-4
8
3.70
4.50
22.2
3.40
150.00
24.1
22.4
18.0
-
-
80.0
5
TGFS 5-28-4
9
3.70
4.50
28.6
3.40
150.00
30.4
28.7
18.0
-
-
100.0
5
