ETS-LN08-M :
MINI-TANGSLOT, Grooving and slitting cutters with FLEXFIT threaded adaptation, carrying tangentially clamped inserts with 4 cutting edges.

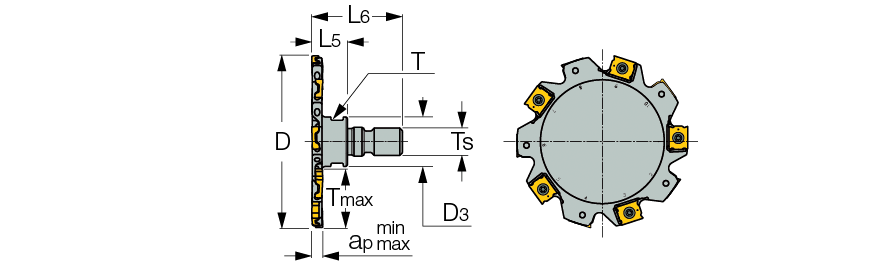

Designation
D
ap
min
ap
max
Tmax
D3
Ts
L5
L6
Z
Zeff
T
ETS D032-03-LN08-M08
32.00
3.00
3.00
9.30
13.00
M08
13.00
30.50
4
2
10.0
ETS D032-04-LN08-M08
32.00
4.00
4.50
9.30
13.00
M08
13.00
30.50
4
2
10.0
ETS D040-03-LN08-M08
40.00
3.00
3.00
13.00
13.00
M08
13.00
30.50
6
3
10.0
ETS D040-04-LN08-M08
40.00
4.00
4.50
13.00
13.00
M08
13.00
30.50
6
3
10.0
ETS D050-03-LN08-M10
50.00
3.00
3.00
13.50
18.00
M10
13.00
33.00
8
4
16.0
ETS D050-04-LN08-M10
50.00
4.00
4.50
15.50
18.00
M10
13.00
33.00
8
4
16.0
ETS D063-03-LN08-M10
63.00
3.00
3.00
22.00
18.00
M10
13.00
33.00
10
5
16.0
ETS D063-04-LN08-M10
63.00
4.00
4.50
22.00
18.00
M10
13.00
33.00
10
5
16.0
