 FDN-CALN11 :  Full slot, adjustable slotting cutters with cartridges using LNMT 1106 inserts, 14.0-19.5 mm width range. Each cutter body can be changed into full slot, bottom or top milling configuration, by mounting the cartridges accordingly. Cutting Conditions Machine Power

 For Adaptation Click on Info.

Shouldering   Facing   Side slotting   Bottom Shouldering

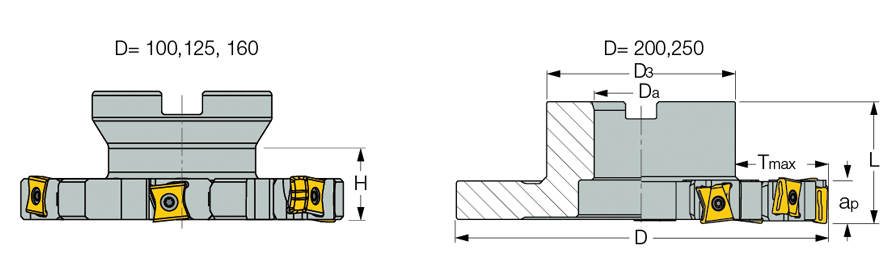

  Designation Ap
min		 Ap
max
Tmax
D
Da
Z
Zeff
D3
L
H
Kg
  FDN D100-1419-27R-CALN11  14.00  19.50  27.40  100.00  27.00  6  3  55.00  40.00  23.40  0.05
  FDN D125-1419-32R-CALN11  14.00  19.50  34.00  125.00  32.00  8  4  65.00  40.00  28.20  1.51
  FDN D160-1419-40R-CALN11  14.00  19.50  45.00  160.00  40.00  10  5  80.00  50.00  28.90  2.53
  FDN D200-1419-40R-CALN11  14.00  19.50  54.00  200.00  40.00  14  7  92.00  50.00  -  1.98
  FDN D250-1419-60R-CALN11  14.00  19.50  58.00  250.00  60.00  16  8  132.00  50.00  -  7.50
