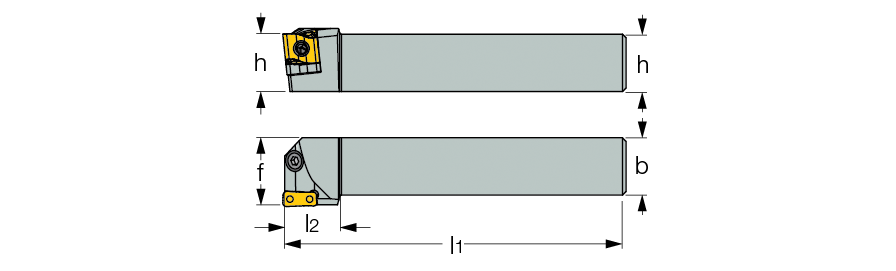

PLANR/L-TANG :  Lever lock toolholders for LNMX.. tangentially clamped inserts. Recommended for heavy longitudinal and face turning.
 Right-hand shown

Ext. tangential 93° approach   Radial Turning
  Designation
h
b
l1
l2
f
Ga°
Gr°
R/L
  PLANL 2525M-15 TANG  25.0  25.0  150.00  25.0  30.0  -6  -6  L
  PLANR 2525M-15 TANG  25.0  25.0  150.00  25.0  30.0  -6  -6  R
  PLANL 3232P-15 TANG  32.0  32.0  170.00  32.0  37.0  -6  -6  L
  PLANR 3232P-15 TANG  32.0  32.0  170.00  32.0  37.0  -6  -6  R
  PLANL 3232P-22 TANG  32.0  32.0  170.00  32.0  37.0  -6  -6  L
  PLANR 3232P-22 TANG  32.0  32.0  170.00  32.0  37.0  -6  -6  R
  PLANL 4040R-22 TANG  40.0  40.0  200.00  40.0  47.0  -6  -6  L
  PLANR 4040R-22 TANG  40.0  40.0  200.00  40.0  47.0  -6  -6  R
