SDN-CALN11 :  Full width, disk type slotting cutters with tangentially mounted inserts. Narrow slitting, saves workpiece material and provides excellent surface quality, (e.g. for bearing caps). Cutting Conditions Machine Power
 Each cutter body can be changed into full slot, bottom or top milling configuration, by mounting the cartridges accordingly.


Shouldering   Side slotting   Facing   Bottom Shouldering

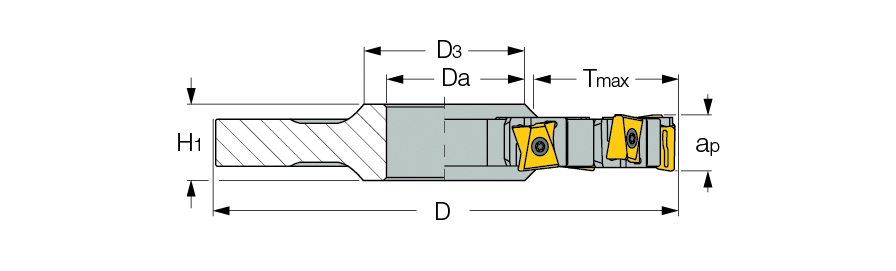

  Designation Ap
min
Ap
max

Tmax

D

Da

Z

Zeff

d1

H1

Kg
  SDN D100-1419-27-CALN11  14.00  19.50  26.80  100.00  27.00  6  3  42.0  20.0  0.97
  SDN D125-1419-40-CALN11  14.00  19.50  31.50  125.00  40.00  8  4  56.0  20.0  1.26
  SDN D160-1419-40-CALN11  14.00  19.50  48.00  160.00  40.00  10  5  56.0  22.0  1.92
  SDN D200-1419-50-CALN11  14.00  19.50  61.00  200.00  50.00  14  7  70.0  22.0  4.75
