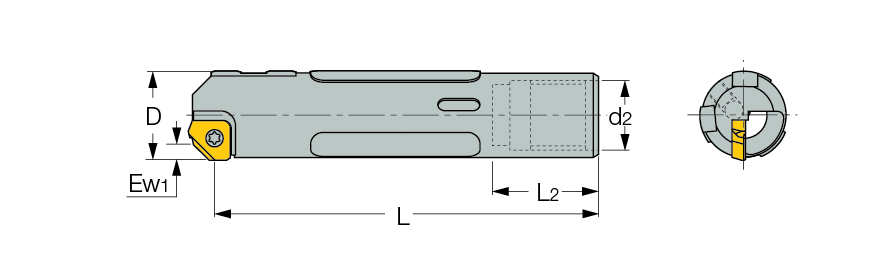

DSC-IA :  Deep single tube counterborers with a through hole, internal single start thread, adjustable diameter. Each item represents a diameter range. For a specific head diameter, an order form should be filled out.


DEEPDRILL   Drilling   COOLANT
  Designation D
min		 D
max
Ew1
L
L2
d2
TsTube designation
  DSC-IA 25.00-26.99  25.00  26.99  3.5  110.00  25.00  20.00  TS-O10
  DSC-IA 27.00-29.99  27.00  29.99  3.5  110.00  25.00  22.00  TS-O11
  DSC-IA 30.00-31.99  30.00  31.99  3.5  110.00  25.00  24.00  TS-O12
  DSC-IA 32.00-33.99  32.00  33.99  3.5  110.00  25.00  26.00  TS-O13
  DSC-IA 34.00-36.99  34.00  36.99  3.5  135.00  40.00  27.00  TS-O14
  DSC-IA 37.00-39.99  37.00  39.99  3.5  135.00  40.00  30.00  TS-O15

For quotation form and user guide click on "More Info".
