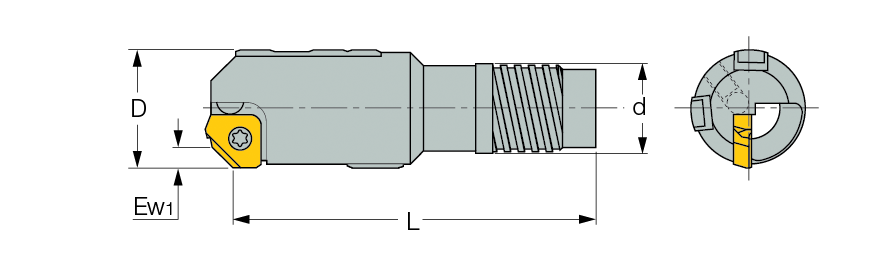

DSC-EA :  Deep single tube counterborers with through hole, external 4 start thread, adjustable diameter. Each item represents a diameter range. For a specific head diameter, an order form should be filled out.


DEEPDRILL   Drilling
  Descrição D
min		 D
max
Ew1
L
d
TsTube designation
  DSC-EA 25.00-26.40  25.00  26.40  3.5  70.00  19.50  TS-I6
  DSC-EA 26.41-28.70  26.41  28.70  3.5  70.00  21.00  TS-I7
  DSC-EA 28.71-31.00  28.71  31.00  3.5  75.00  23.50  TS-I8
  DSC-EA 31.01-33.30  31.01  33.30  3.5  75.00  25.50  TS-I9
  DSC-EA 33.31-36.20  33.31  36.20  3.5  75.00  28.00  TS-I10
  DSC-EA 36.21-39.60  36.21  39.60  3.5  90.00  30.00  TS-I11
  DSC-EA 39.61-39.99  39.61  39.99  3.5  90.00  33.00  TS-I12

For quotation form and user guide click on "More Info".
