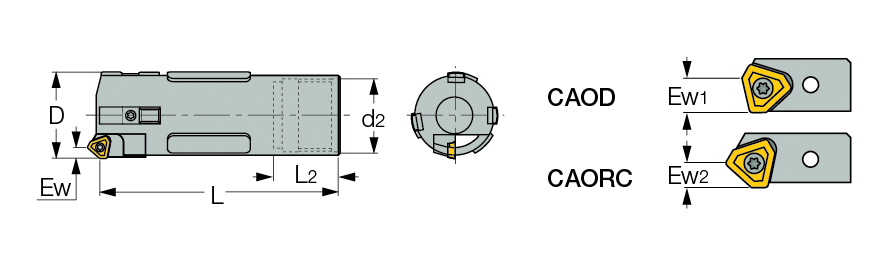

DSC-IC :  Deep single tube counterborers with a through hole, internal single Start thread and a cartridge. Each item represents a diameter range. For a specific head diameter, an order form should be filled out.


DEEPDRILL   Drilling
  Designation D
min
D
max

Ew1

Ew2

L

L2

d

TsTube designation
  DSC-IC 40.00-43.99  40.00  43.99  8.0  2.5  135.00  40.00  33.00  TS-O16
  DSC-IC 44.00-46.99  44.00  46.99  8.0  2.5  135.00  40.00  37.00  TS-O17
  DSC-IC 47.00-51.99  47.00  51.99  8.0  2.5  145.00  40.00  41.00  TS-O18
  DSC-IC 52.00-56.99  52.00  56.99  9.0  4.0  145.00  40.00  44.00  TS-O19
  DSC-IC 57.00-60.99  57.00  60.99  9.0  4.0  170.00  40.00  49.00  TS-O20
  DSC-IC 61.00-67.99  61.00  67.99  9.0  4.0  170.00  40.00  53.00  TS-O21
  DSC-IC 68.00-74.99  68.00  74.99  13.0  5.0  170.00  40.00  59.00  TS-O22
  DSC-IC 75.00-80.99  75.00  80.99  13.0  5.0  205.00  70.00  65.00  TS-O23
  DSC-IC 81.00-90.99  81.00  90.99  13.0  5.0  205.00  70.00  71.00  TS-024
  DSC-IC 91.00-98.99  91.00  98.99  13.0  5.0  215.00  70.00  79.00  TS-O25
  DSC-IC 99.00-110.99  99.00  110.99  13.0  5.0  225.00  70.00  90.00  TS-O26

CAOD - Rough boring cartridge (large D.O.C.)
CAORC - Precision boring cartridge
Supplied with CAOD cartridge, unless ordered differently
For quotation form and user guide click on "More Info"
