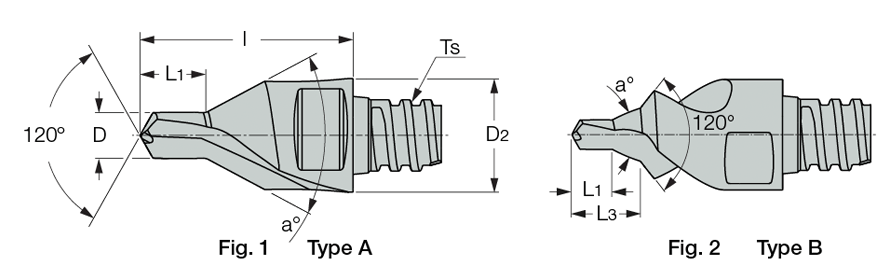

MM ECS :  MULTI-MASTER, centering drill (DIN 332), interchangeable solid carbide heads.


Drilling
  Designation
D
D2
l
L1
Ts
a°
  Grade
  MM ECS-A3.15X08-2T05  3.28  8.00  15.00  4.6  T05  60 IC908
  MM ECS-A4.00X10-2T06  4.12  10.00  19.00  5.9  T06  60 IC908
  MM ECS-A5.00X12-2T08  5.13  12.00  23.00  7.2  T08  60 IC908
  MM ECS-A6.30X16-2T10  6.46  16.00  28.00  8.9  T10  60 IC908

For Clamping keys (should be ordered separately), tightening torques and clamping instructions, click on "More Info".
Do not apply lubricant to the threaded connection.
