HTP-M-LN10 :  TNGPLUNGE, Side plungers with FLEXFIT connection carrying tangentially clamped inserts with 4 cutting edges. 8 mm side plunging capacity and 3 mm maximum face milling DOC. Provide excellent side wall surface finish and a flat bottom.


Shouldering   Facing   Side plunging   COOLANT

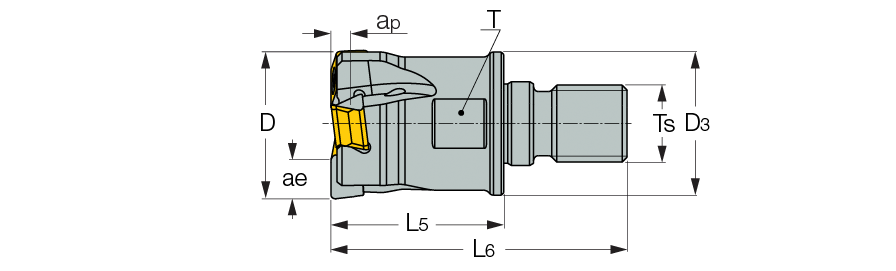

  Designation
D
ae
ap
Z
L6
L5
D3
Ts
TClamping wrench size
Kg
  HTP D025-2-M12-LN10  25.00  7.0  3.00  2  57.00  35.00  21.00  M12  17.0  0.09
  HTP D032-3-M16-LN10  32.00  8.0  3.00  3  60.00  35.00  29.00  M16  25.0  0.16
  HTP D035-3-M16-LN10  35.00  8.0  3.00  3  68.00  43.00  29.00  M16  25.0  0.22
  HTP D042-4-M16-LN10  42.00  8.0  3.00  4  68.00  43.00  29.00  M16  25.0  0.26

For adaptation, click on "More Info".
