	DIN 69871
Sub Application

DIN69871-HYDRO (Heavy duty) : Heavy Duty, Short Hydraulic Chucks with DIN69781 Form A/B Shanks.

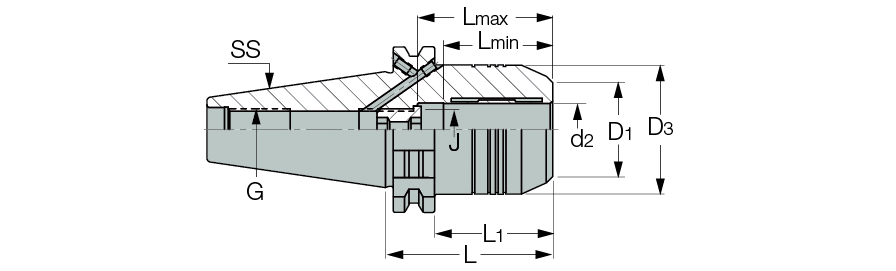

Designation	S.s	C.Si	d2	D1	D3	L	L1	L min	L max	J	G	Kg
DIN69871 40 HYDRO 20X64.5	40	20	20.00	40.0	49.50	64.50	45.0	42.0	52.0	M16X1	M16	1.34
DIN69871 50 HYDRO 32X81	50	32	32.00	56.0	72.00	81.00	62.0	54.0	64.0	M16X1	M24	4.10
