 T490 ELN-13 :  Endmills with Tangentially Clamped Inserts, Diameter Range 32-50 mm Cutting Conditions Machine Power
 "B" Type with cylindrical shank which may be shortened.
 For Adaptation Click on Info.

Slotting   Shouldering   Facing

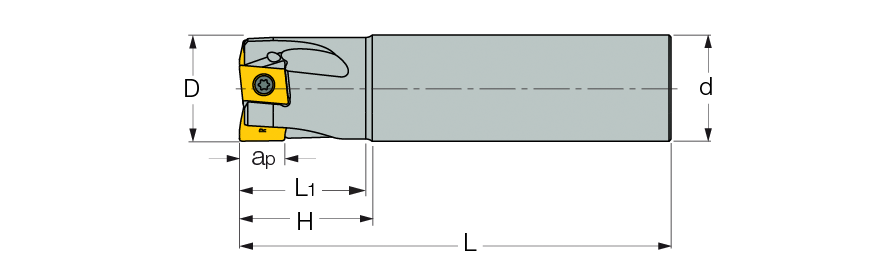

  Designation
D
Z
L
H
L1
Ap
d
Shank
Cool
Kg
  T490 ELN D32-3-C32-13  32.00  3  130.00  40.00  38.0  12.50  32.00  C  Y  2.59
  T490 ELN D32-3-C32-13B  32.00  3  250.00  50.00  48.0  12.50  32.00  C  Y  1.50
  T490 ELN D32-3-W32-13  32.00  3  110.00  40.00  38.0  12.50  32.00  W  Y  0.03
  T490 ELN D40-4-C32-13  40.00  4  130.00  40.00  -  12.50  32.00  C  Y  1.50
  T490 ELN D40-4-W32-13  40.00  4  115.00  40.00  -  12.50  32.00  W  Y  0.83
  T490 ELN D50-5-C32-13  50.00  5  130.00  40.00  -  12.50  32.00  C  Y  0.00
