PWLNR/L-X :  Lever lock external turning toolholders for negative HELITURNLD trigon inserts. Use only WNMX...-HTW inserts.

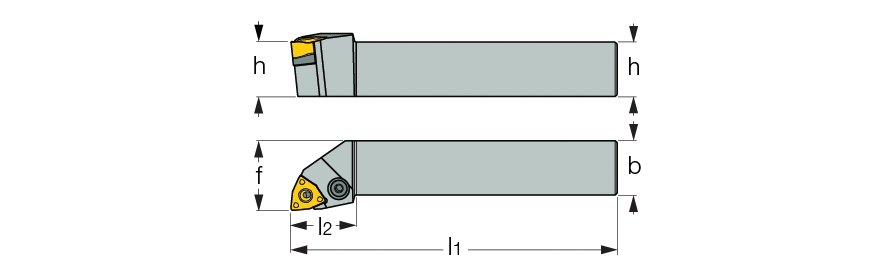

 Right-hand shown

Ext. 80° trigon 95 approach   Radial Turning
  Designation
h
b
l1
l2
f
Ga°
Gr°
R/L
  PWLNL 2020K-06X  20.0  20.0  125.00  25.0  25.0  -6  -6  L
  PWLNR 2020K-06X  20.0  20.0  125.00  25.0  25.0  -6  -6  R
  PWLNL 2525M-06X  25.0  25.0  150.00  20.0  32.0  -6  -6  L
  PWLNR 2525M-06X  25.0  25.0  150.00  20.0  32.0  -6  -6  R
  PWLNL 2020K-08X  20.0  20.0  125.00  30.0  25.0  -6  -6  L
  PWLNR 2020K-08X  20.0  20.0  125.00  30.0  25.0  -6  -6  R
  PWLNL 2525M-08X  25.0  25.0  150.00  30.0  32.0  -6  -6  L
  PWLNR 2525M-08X  25.0  25.0  150.00  30.0  32.0  -6  -6  R
  PWLNR 3232P-08X  32.0  32.0  170.00  30.0  40.0  -6  -6  R

Important: These tools should be used only with the HELITURNLD inserts
